Description

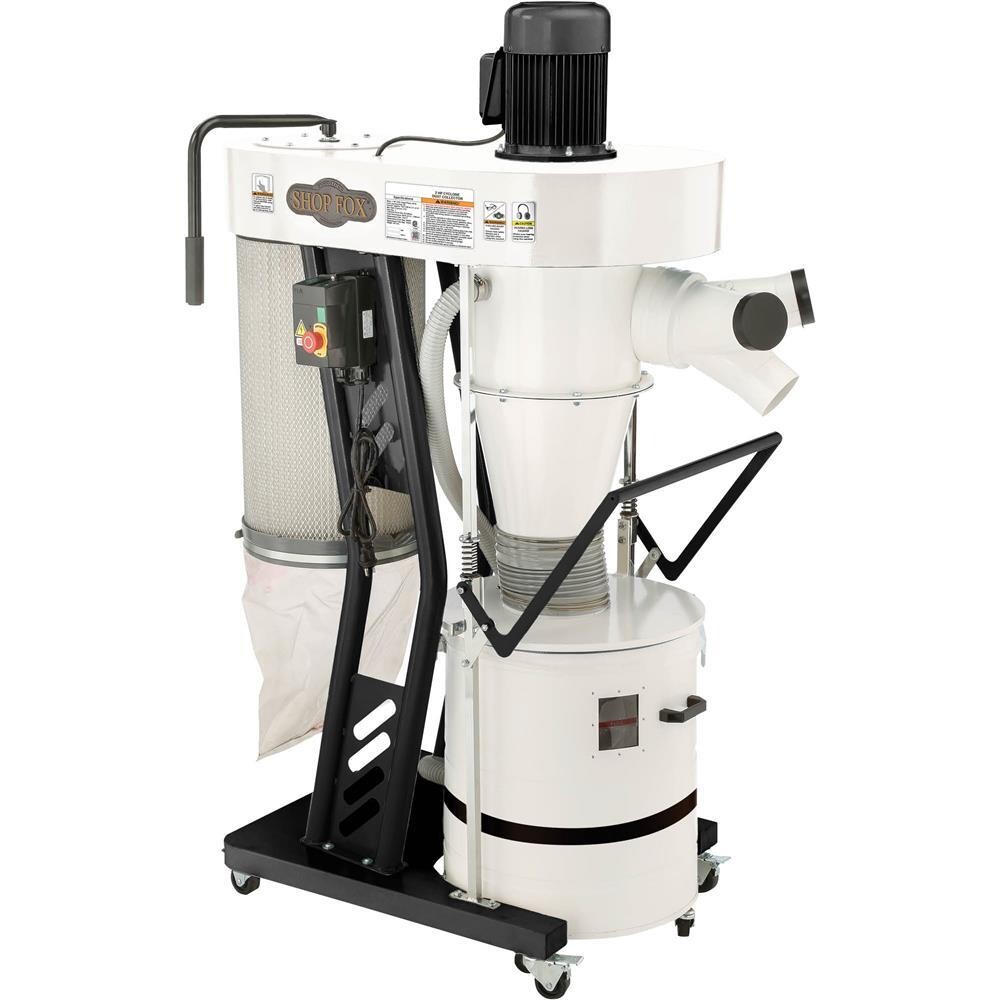

This Cyclone Dust Collector provides the efficiency of a 2-stage cyclone system with the portability of a single-stage dust collector. Features include high surface area pleated filters with paddles to mechanically knock off dust cake, remotely controlled magnetic switches, easy lid lifting levers for emptying collection drums, and a compact design for moving around the shop.

Specifications

• Motor: 2 HP, 220V, 3450 RPM, 9A
• Intake hole size: 7"
• Impeller: 13" welded steel
• Collection drum size: 20 gallons
• Air suction capacity: 1023 CFM
• Static pressure: 10.9"
• Approx. shipping weight: 397 lbs.
