Description

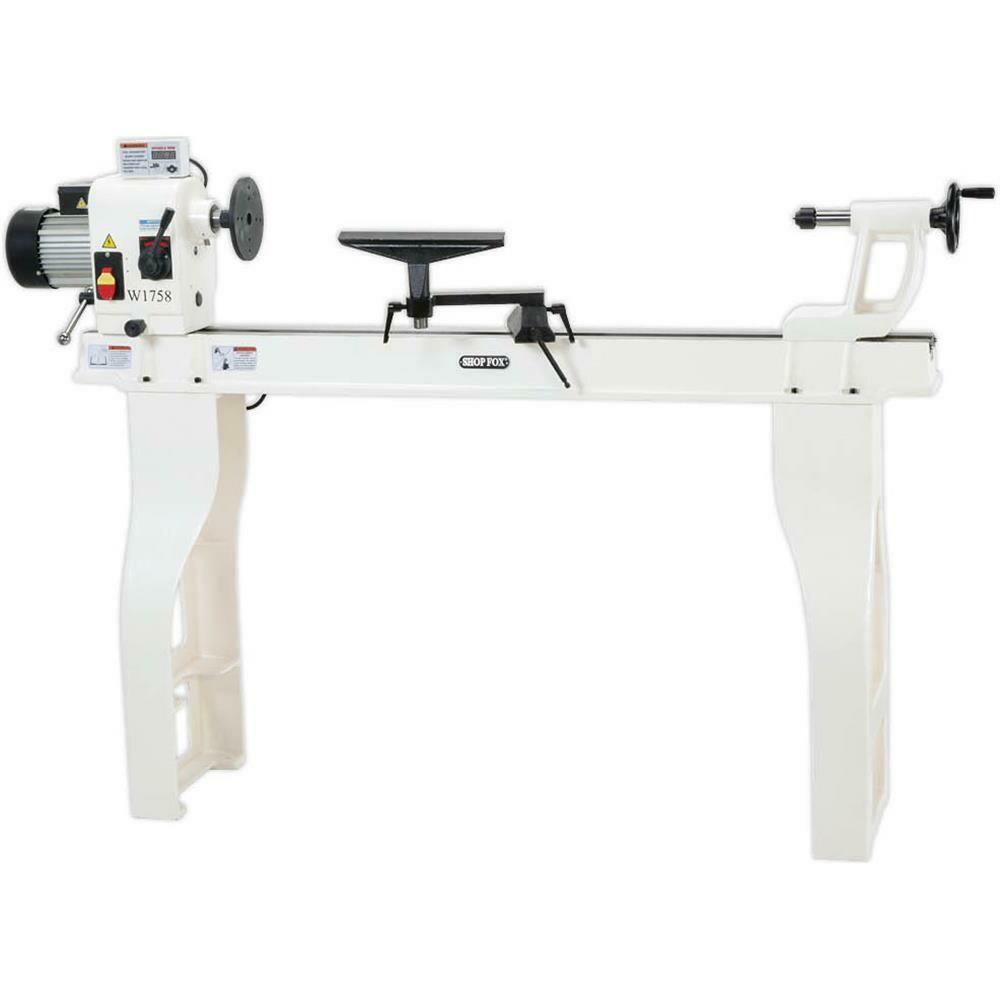

Here it is! Our fully featured, large-capacity wood lathe at a competitive price! Featuring a hefty 2 HP motor, variable-speed spindle, a swivel-head for outboard turning, a digital tachometer for setting the exact spindle speed, precision-ground cast-iron bed, headstock and tailstock for quick locks, and heavy cast-iron legs with floor-mounting holes for the ultimate in stability. Go ahead. Try one out for yourself. This beauty will handle it all!

Specifications

• Motor: 2 HP, 110V, single-phase, 14A
• Swing over bed: 16"
• Distance between centers: 46"
• Heavy-duty, precision-ground cast-iron bed and cast-iron legs ensure stability and minimal vibration
• 1" x 8 TPI RH headstock spindle
• Spindle tachometer with digital readout
• MT#2 spindle & tailstock tapers
• Spindle bore: 3/8"
• Tool rest extension arm
• Variable speeds: 600-2400 RPM
• Quick lock/release levers for tailstock & headstock
• Headstock rotation: 0°, 60°, 90°, 120°, 180°
• 6" faceplate
• MT#2 spur center
• MT#2 live center
• Tool rest with swivel arm extension
• Overall dimensions: 72-1/2"L x 19"W x 48"H
• Approximate shipping weight: 338 lbs.
