Description

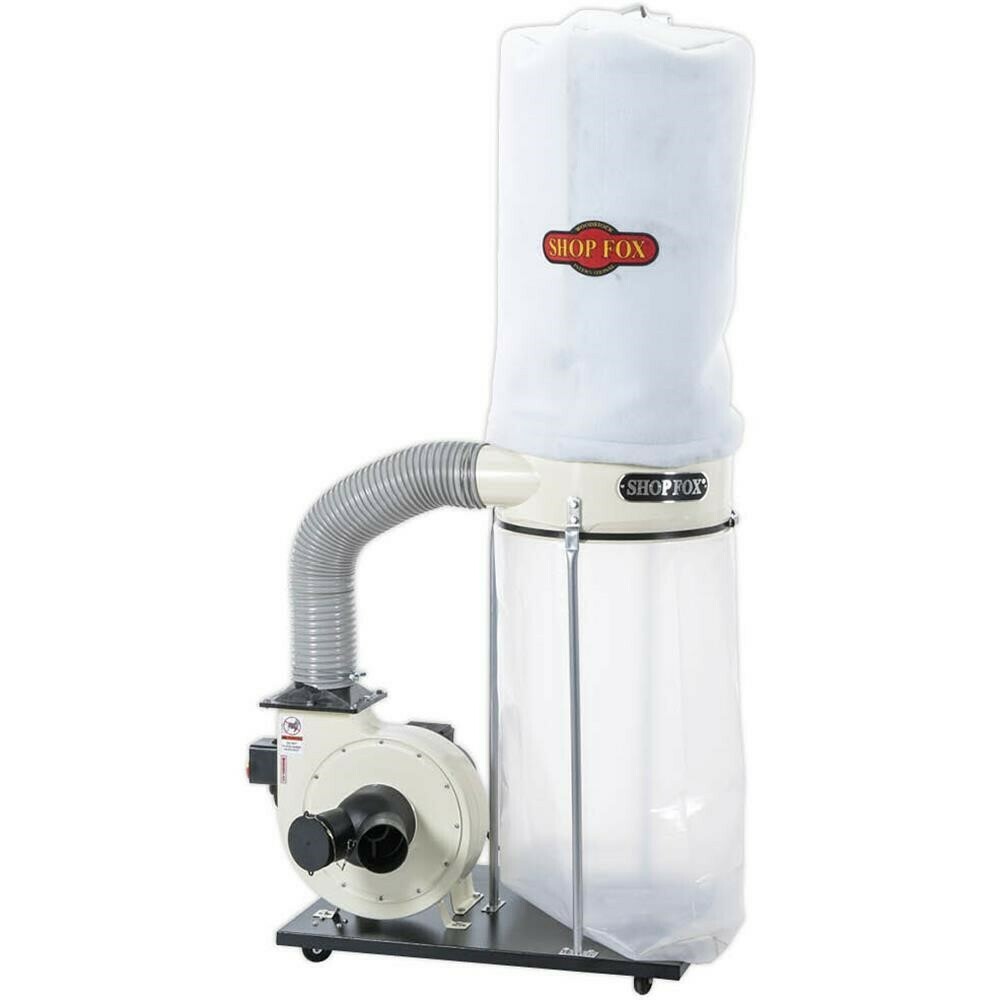

This SHOP FOX® Dust Collector features a 2 HP motor and an extra Heavy-Duty 12" steel impeller that moves 1,550 cubic feet of air every minute. When it comes to performance and value, this one is hard to beat! For wood dust only. Models manufactured after June 2015 come with a 2.5 micron felt upper filtration and a plastic (PE) lower collection bag. The upper 2.5 micron bag (D4572) and lower plastic bags (D4573-5pk) can be purchased separately for any collectors that do not include them.

Specifications

• Motor: 2 HP, 220V, single-phase, 3450 RPM, 12A
• Static pressure: 12.3"
• Impeller: 12" balanced steel, radial fin
• Portable base size: 21-1/2" x 33-1/2"
• Bag capacity: 5.4 cubic feet
• Air suction capacity: approx. 1550 CFM
• 6" Inlet has a removable "Y" fitting with two 4" openings
• Standard bag filtration: 2.5 Micron
• Powder-coated finish
• Height with bags inflated: 78"
• Approximate shipping weight: 108 lbs.
