Description

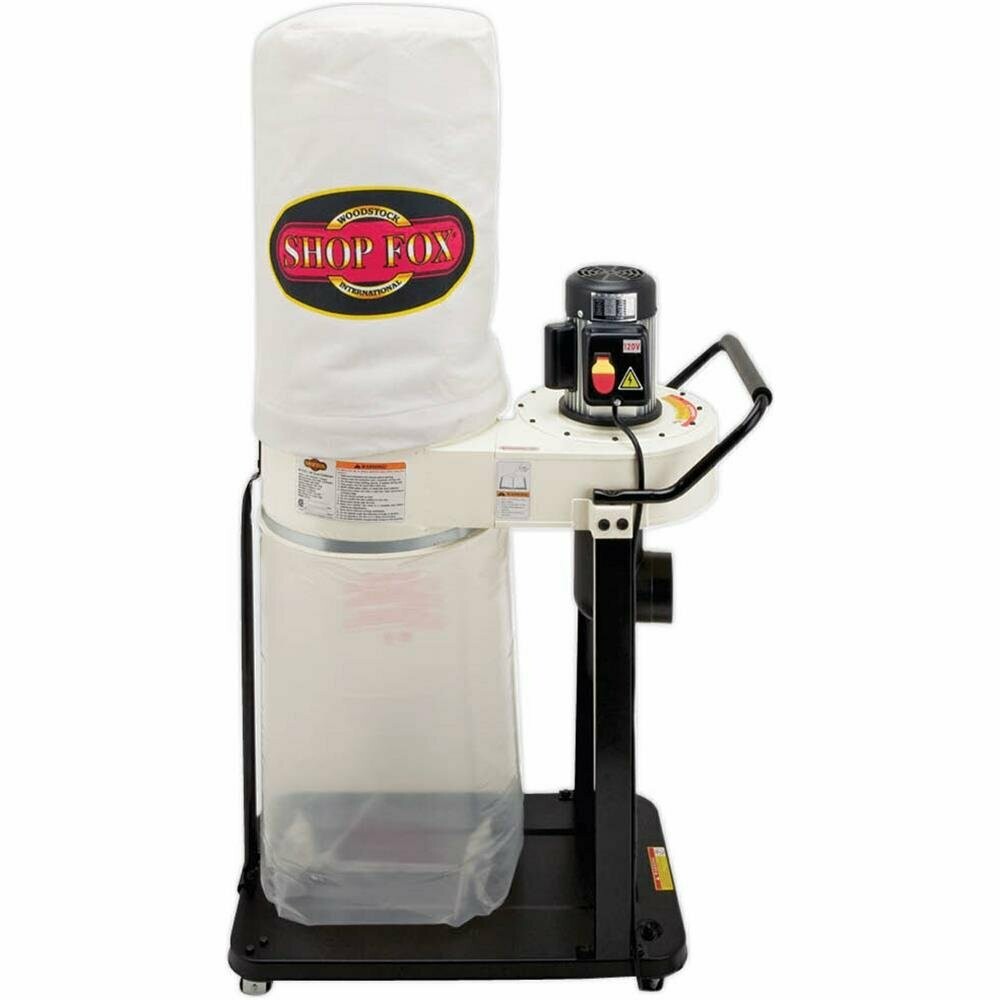

Designed for portability, the model W1727 1 HP Dust Collector can be moved from one machine to another when needed, instead of having to build an entire fixed dust collection system and running ducts to each machine. CSA certified meeting CSA C22.2 #243–M91 and UL 1017–4th standards!

Specifications

• Motor: 1 HP, 110V/220V, single-phase, prewired 110V
• Motor amp draw: 9A/4.5A
• Air suction capacity: 800 CFM
• Static pressure: 5.67"
• Number of 4" intake holes: 1
• Impeller: 9" balanced steel, radial fin
• Bag capacity: 2.1 cubic feet
• Portable base size: 15-3/4" x 26"
• Bag size (diameter x depth): 14-3/4" x 24-3/8" (2)
• Powder-coated finish
• Height with bags inflated: 54-1/2"
• Standard bag filtration: 2.5 micron
• Sound level: 79-81 dB
• Approximate shipping weight: 59 lbs.
